Heat-Resistant Inline Rubber Duckbill Check Valve with 1.0Mpa and 1.6Mpa Pressure Ratings in Black

1.0Mpa Duckbill Check Valve

1.6Mpa Rubber Duckbill Valve

Black Flexible Joint Rubber Valve

Menşe yeri:

Çin

Marka adı:

JINGNING

Sertifika:

Model numarası:

Bizimle İletişim

Bir İndirim İste

Ürün Detayları

Boyut:

DN100

Bağlantı:

Flanş

Garanti Zamanı:

18 aylık

Anahtar kelime:

Esnek eklemli kauçuk

OEM & ODM:

Mevcut

Şirket:

üretici

Basınç:

1.0Mpa, 1.6Mpa

Renk:

Siyah

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

Ambalaj bilgileri

Ahşap Kutu

Ödeme koşulları

L/C, D/A, D/P, Western Union, T/T, MoneyGram

Yetenek temini

5000 Takım/Hafta

İLGİLİ ÜRÜNLER

Customized DN300 EPDM NBR Rubber Duckbill Check Valve with 20 Years' Experience for Wastewater Applications

En İyi Fiyatı Alın

Corrosion Resistant Maintenance Free Duckbill Check Valve with ZTC Certification for Waterproof Systems

En İyi Fiyatı Alın

Heat-Resistant Inline Rubber Duckbill Check Valve with 1.0Mpa and 1.6Mpa Pressure Ratings in Black

En İyi Fiyatı Alın

ISO9001 Certified DN350 Rubber Bellow with Flange Sewage Duckbill Check Valve with 18months Warranty and 20Years' Experience

En İyi Fiyatı Alın

Bizimle İletişim

86-150-93112546

joints@chnflex.com

Şimdi İletişime Geçin

Ürün Tanımı

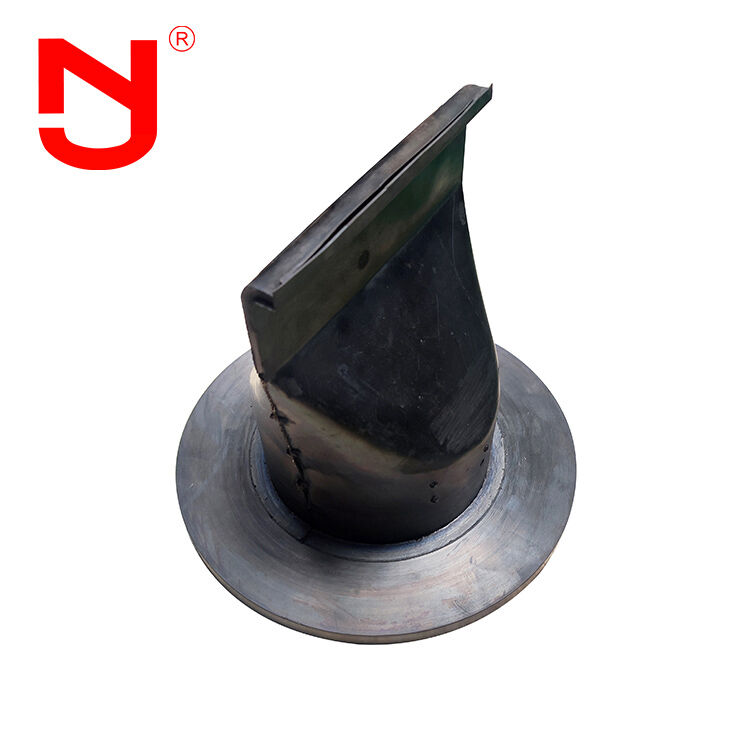

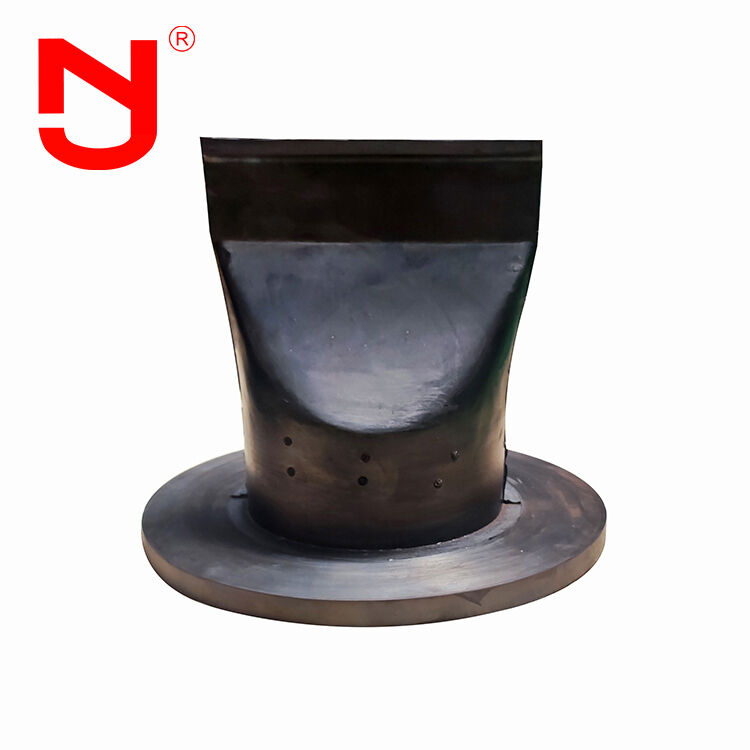

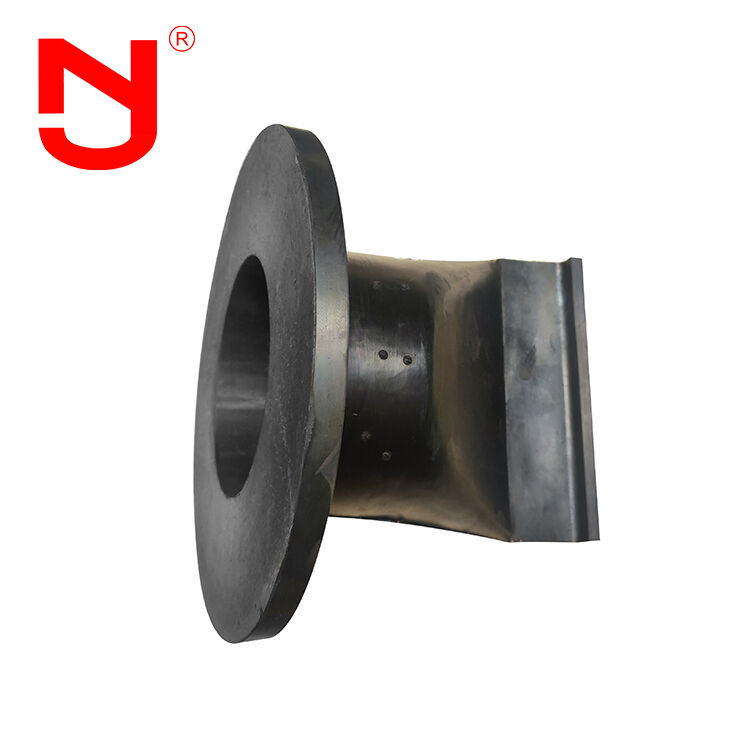

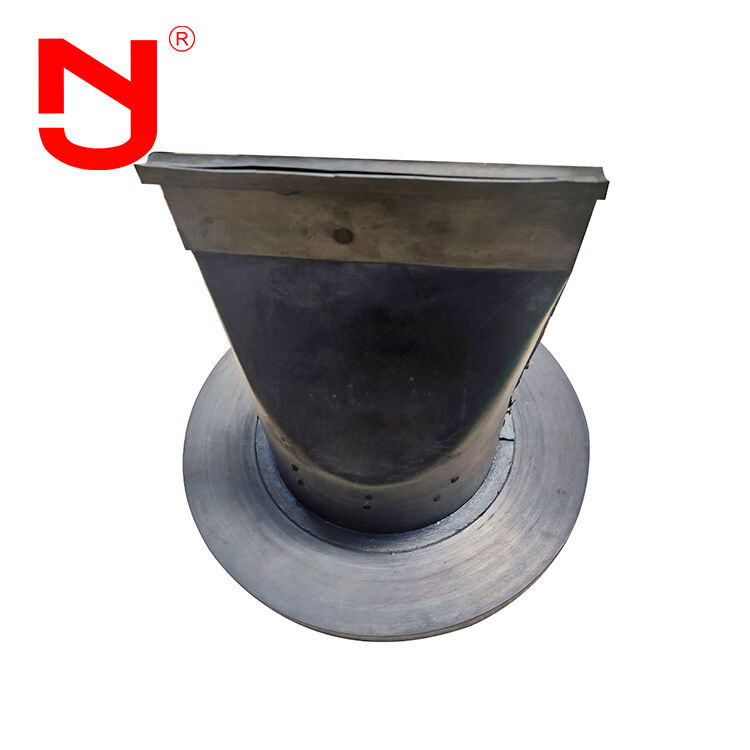

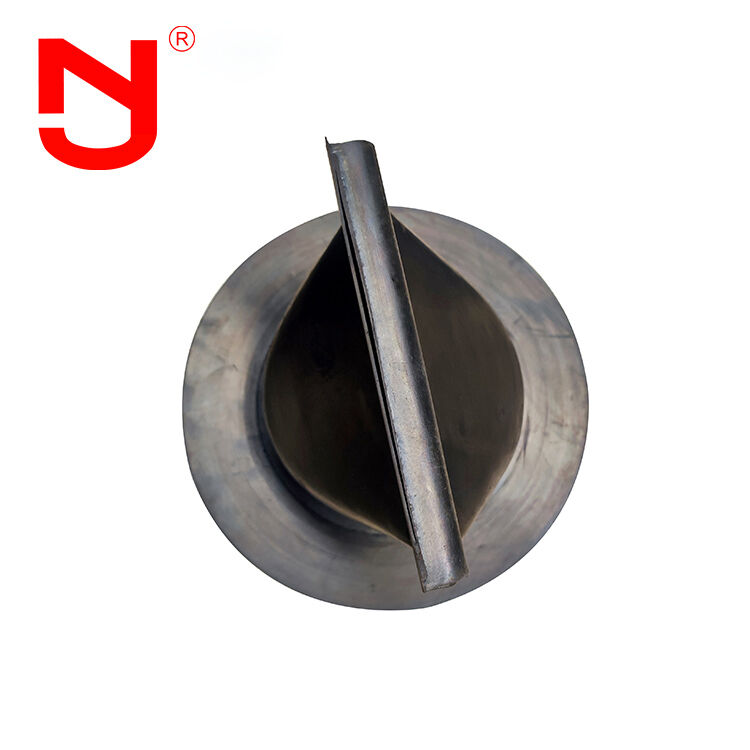

Heat-Resistant Inline Rubber Duckbill Check Valve Flexible Joint Rubber

A Heat-Resistant Inline Rubber Duckbill Check Valve with a Flexible Rubber Joint is a high-temperature-capable one-way valve that allows forward flow, prevents backflow, and provides flexibility to absorb vibration and pipe movement in pipeline systems.

Features & Benefits

100% full rubber structure, meeting various anti-corrosion requirements (different rubber materials available)
No blockage with excellent sealing performance
Long service life with no faults and maintenance-free operation
No moving parts, mechanical components, electric signals, or manual operation required
Opens with water head pressure as low as 0.01M
Minimizes head loss in most applications
Customizable installation forms to meet specific requirements
Easy installation with low cost and operational expenses

Technical Specifications

Pipe Size ID	Length	Height	Flange Outside Diameter
DN(mm) \| NPS	L(mm)	H	A
50 \| 2	150	100	150
80 \| 3	220	140	200
100 \| 4	250	200	225
150 \| 6	340	265	275
200 \| 8	420	325	338
250 \| 10	520	425	400
300 \| 12	620	525	485
350 \| 14	700	625	525
400 \| 16	800	725	588
450 \| 18	900	825	625
500 \| 20	980	925	688
600 \| 24	1120	1025	800
700 \| 28	1180	1125	969
800 \| 32	1350	1400	1080
900 \| 36	1500	1525	1150
1000 \| 40	1600	1725	1325
1200 \| 48	1840	1950	1485

For duckbill check valves with special requirements or custom flanges, please provide detailed drawings and specifications for customization.

Product Advantages

Competitive factory pricing
17 years manufacturing experience with 5 years export experience
Strict quality control exceeding industry standards
Custom specifications and OEM services available
Free samples provided for quality verification
Large inventory available for immediate shipment

Applications

The integrated flange and valve design provides easy installation. The all-rubber construction prevents blockage and jamming while allowing solid particles to pass through smoothly. Ideal for:

Waterproof systems
Drainage systems
Pump outlets
Lifting pump stations
Submerged aeration systems

Our Services

24-hour customer support
Free samples available
Customization services
Technical drawings provided
Multiple payment options
Factory quality inspections
Extended warranty periods
Secure transportation packaging

Frequently Asked Questions

Q: What's the rubber material of Flexible Joint Rubber?

A: Available in EPDM, CR, NBR, and other materials depending on working environment and media requirements.

Q: Can the Flexible Joint Rubber be marked with customized logo?

A: Yes, we provide OEM/ODM services including custom branding.

Q: Can you provide drawings of Flexible Joint Rubber?

A: Yes, technical drawings are available upon request.

Q: Can we get a sample of Flexible Joint Rubber?

A: Yes, we provide free samples for quality testing.
